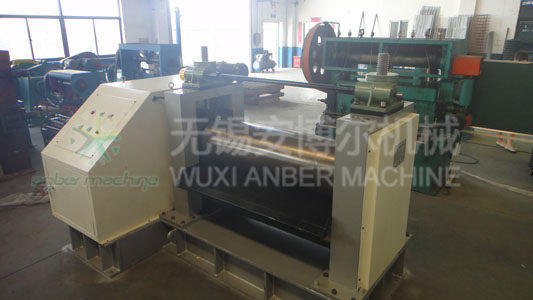

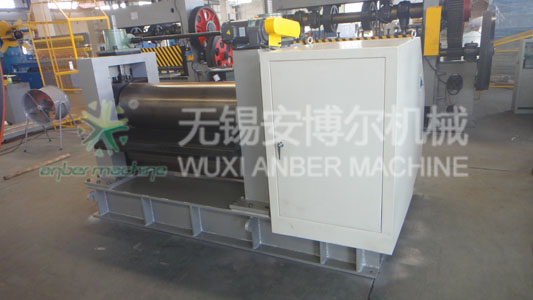

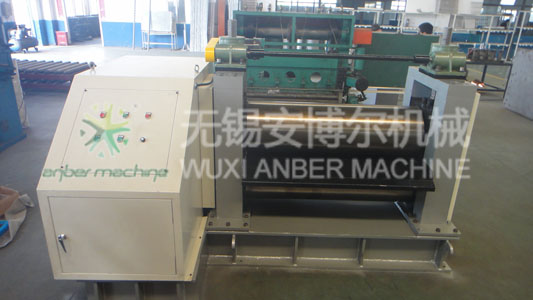

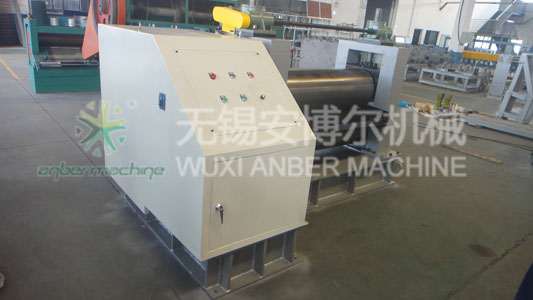

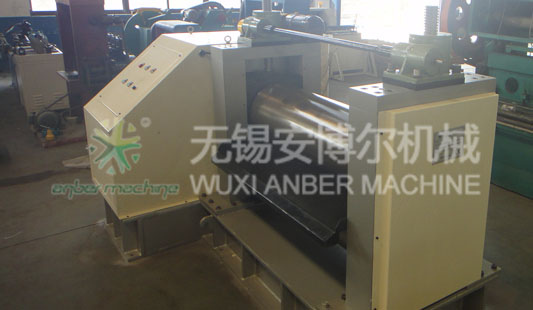

Auto flatten machine

This expanded metal mesh machine can process cold-rolled steel, aluminum material to expanded mesh with hexagonal, diamond, half round, etc. which are used for building, hardware, machine tool, electric industrial, protective and decoration of household electrical appliances.
Material strength is under 450N/mm2, material with elongation over 25%.
Expanded process is finished by crankshaft connecting rod system, moved by cam,feed by stepping motor, the feeding distance can be easily adjusted. This machine has characteristics of structure, easy operation and steady performance.
Width： MAX.1300mm
Material Thickness: 1-2mm
Low Carbon Material Thickness: 1-4MM
Roller Diameter: 400-500mm, 2PCS
Working Speed: 10-20m/min
Motor: 15KW
Power: 380V, 50HZ
Size: 1940x1600x2000mm
Controller on the machine, regular speed control
Down Roller max. control by switch protection
