Accessory machine for expanded metal mesh machine

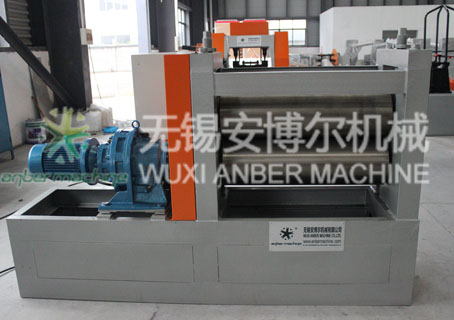

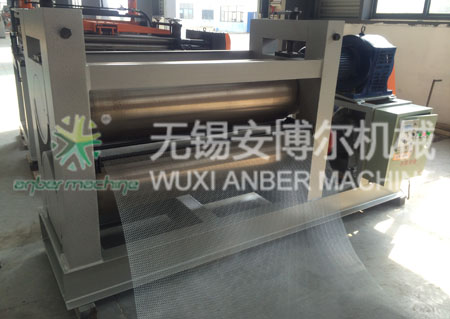

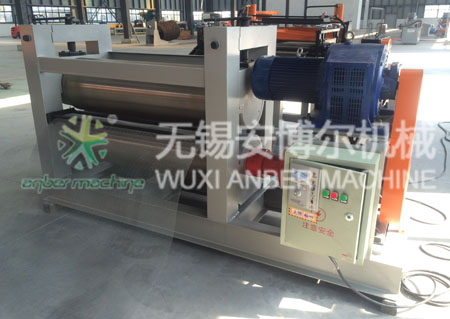

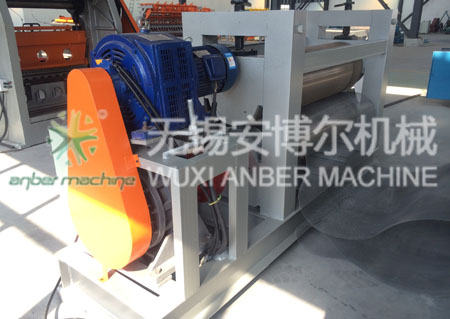

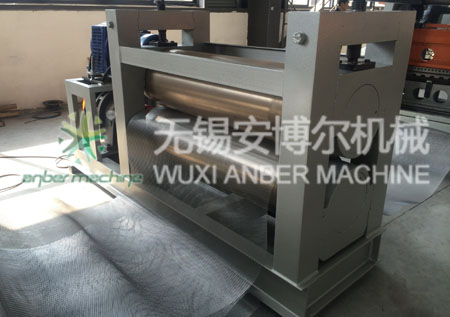

Normal flatten machine

This expanded metal mesh machine can process cold-rolled steel, aluminum material to expanded mesh with hexagonal, diamond, half round, etc. which are used for building, hardware, machine tool, electric industrial, protective and decoration of household electrical appliances.
Material strength is under 450N/mm2, material with elongation over 25%.
Expanded process is finished by crankshaft connecting rod system, moved by cam,feed by stepping motor, the feeding distance can be easily adjusted. This machine has characteristics of structure, easy operation and steady performance.

Model	Max. expanded mesh width (mm)	Max. material thickness (mild steel)(mm)	Roller diameter (mm)	Roller length (mm)	Flattening times
ABE-TYP0.8/600	600	0.8	350-450	750	2-3
ABE-TYP1.0/1250	1250	1.0	400-500	1300	2-3
ABE-TYP2.0/1250	1250	2.0	700-800	1300	2-3
ABE-TYP3.5/1500	1500	3.5	700-800	1550	2-3

The flatten machine also can be designed according to the cutomer's requirement, please enquiry with the following technical parameter:
1. What material you want to flat
2. Width of the plate (mesh) you want to flat
3. What is the thickness of the material
