Accessory machine for expanded metal mesh machine

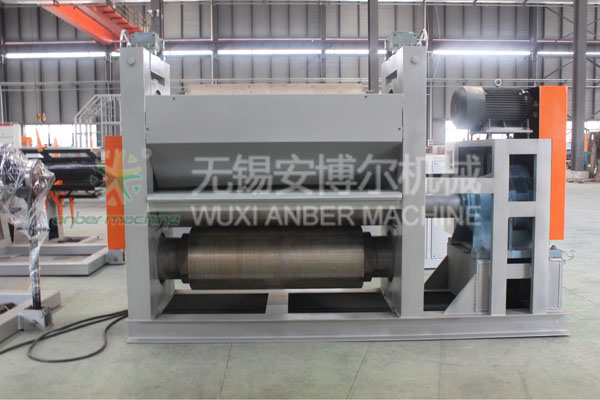

Four-roller flattening machine

Four-roller flattening machine

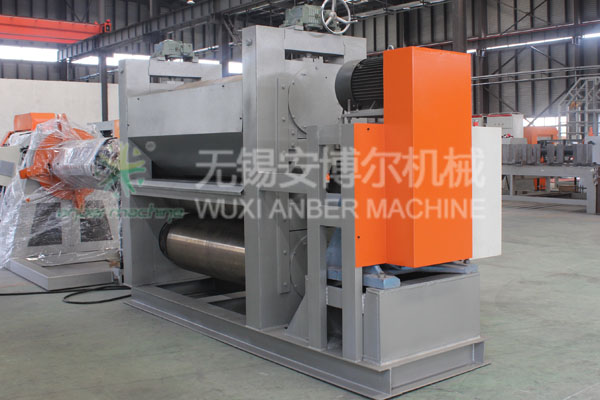

Flatten machine

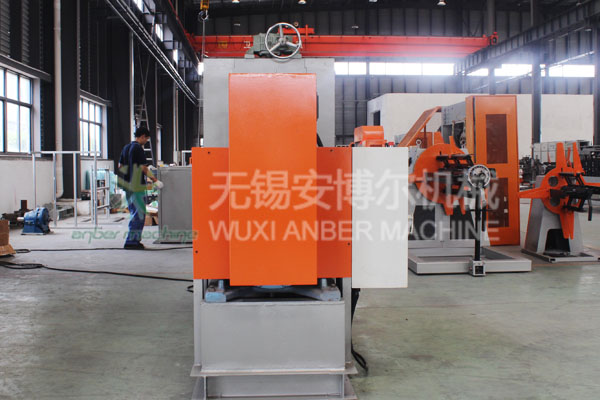

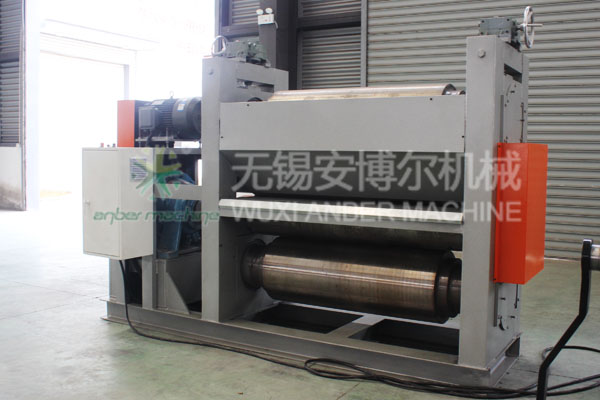

/Flattening machine

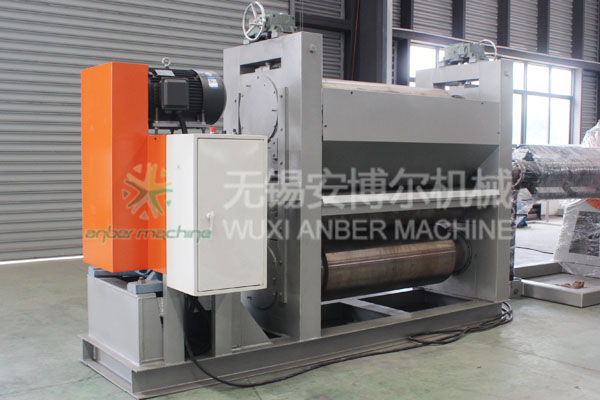

Flatten machine

Four-roller flattening machine





Model
Max. expanded
mesh width
(mm)
Max. material thickness
(mild steel)
(mm)
Working roller diameter
(mm)
Working roller length
(mm)
Support roller diameter
(mm)
Support roller length
(mm)
Flattening times
ABE-FYP1.0/1250
1250
1.0
260
1350
450
1200
1
ABE-FYP1.5/1250
1250
1.5
280
1350
450
1200
1
ABE-FYP3.5/1500
1500
3.5
280
1650
500
1550
1
