Accessory machine for expanded metal mesh machine

Decoiler

Decoiler

Decoiler

Uncoiler

Uncoiler

Decoiling machine

Decoiling machine

Uncoiling machine

Uncoiling machine

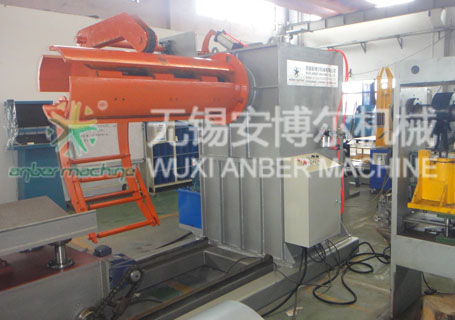

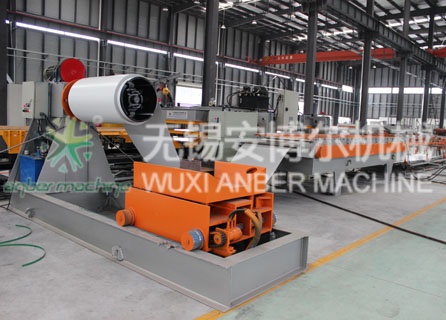

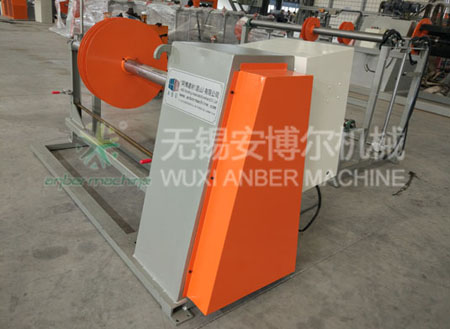

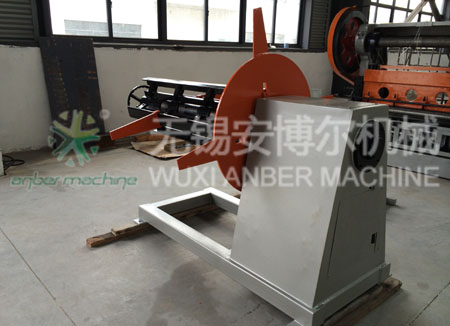

The decoiler is the accessory machine for the expanded metal mesh machine, it is used for opening the rolling sheet irons which is fed into the expanded metal mesh machine. We can supply these kinds of uncoiler such as heavy duty uncoiler, double stock reel uncoiler, stocker reel, 150kg decoiler, 500kg decoiler,1000kg decoiler, 2000 kg decoiler, etc. You can choose your model according to the coil diameter and the coil weight in your country.
The following is the technical parameter of the decoiler:
Model ABE-600 ABE-1000 ABE-1300 ABE-2000
Loading weight 2T 3.5T 8T 10T
Width 600mm 1000mm 1300mm 2000mm
Inner dia. Min. 400mm (adjustable) or as customer's requirement
Inner diameter 405mm 508mm 508mm 508mm

The decoiler also can be designed according to the cutomer's requirement, please enquiry with the following technical parameter:
1. Max. loading weight
2. Inner dia. of the coil. If you want the inner dia. adjusted decoiler, please inforem the range of inner diameter.
3. Width of the coil you want to decoil
