Accessory machine for expanded metal mesh machine

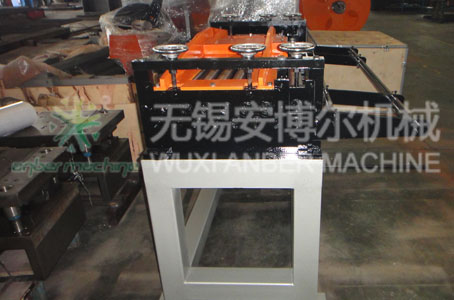

Straightening machine

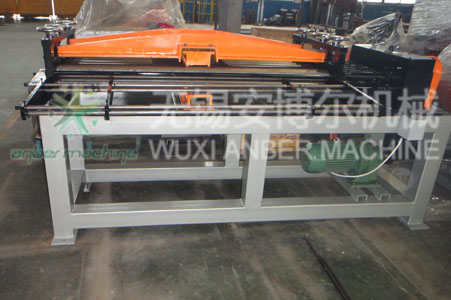

7 rollers of mesh levelling machine

7 rollers of mesh levelling machine

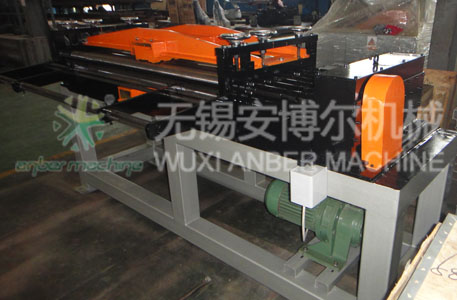

mesh straightening machine

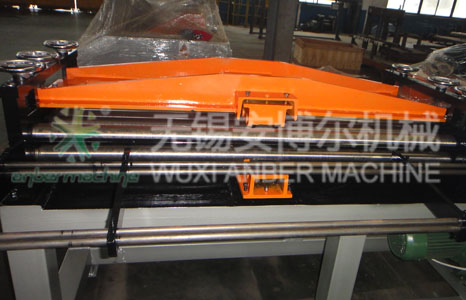

Straightening machine

Heavy type mesh straightening machine

Heavy type mesh straightening machine

mesh straightening machine

Mesh straightening machine


The straightening machine is the accessory of expanded metal mesh production line, it is used because the mesh from the expanded metal mesh machine normally is curve, so the straightening machine is used to remove the curve from the expanded metal mesh.

Model
Max. expanded mesh width
(mm)
Max. material thickness
(mild steel)(mm)
Material feeding
Roller material
Surface treatment of roller
Roller used life
Roller quantity
Roller diameter
(mm)
Leveling precision(
area mistake)
ABE-ZP1.0/1250
1250
1.0
Worm and gear
45# steel high frequency quenching
Hard chromium
5-10 years
Guide roller*2
Leveling roller*15(7 up 8 down)
50-70
Within ¡À5mm/1m length
ABE-ZP1.5/1250
1250
1.5
ABE-ZP2.0/1250
1250
2.0
Guide roller*2
Leveling roller*7(3 up 4 down)
100-150
ABE-ZP2.5/1500
1500
2.5


The straightening machine also can be designed according to the cutomer's requirement, please enquiry with the following technical parameter:
1. Max. straightening width
2. The material you want to Straighten.
3. The thickness of the material you want to Straighten
