Accessory machine for expanded metal mesh machine

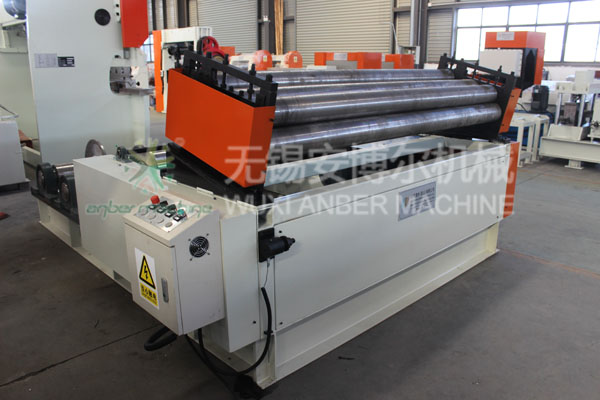

15 Tons roller-type decoiling and leveling machine

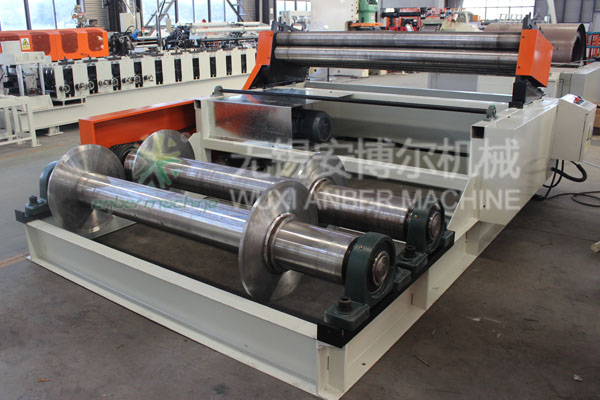

Roller type decoiling and leveling machine

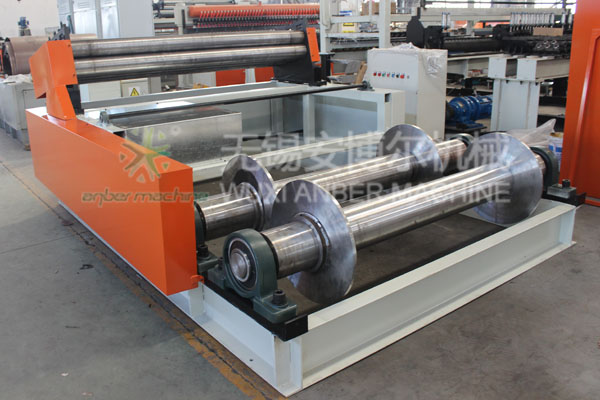

Decoiling and leveling machine for steel coil

Steel coil decoiler and leveler

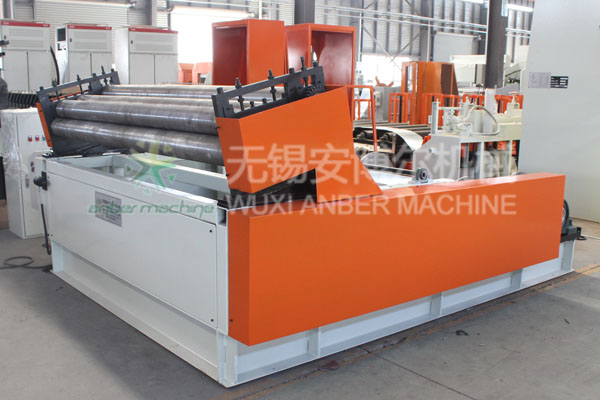

Roll type decoiler and leveler

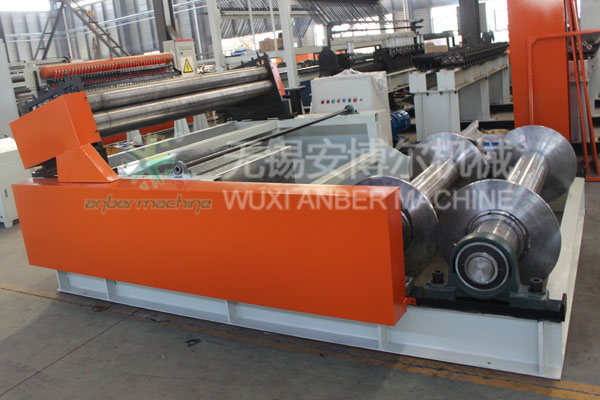

Roller decoiler and leveling machine



Descriptions:
The roller type decoiling and leveling machine is composed of a frame, conveying roller mechanism, leveling mechanism, motor reducer drive, sprocket chain transmission mechanism, shield and electric control system.
1) The uncoiling conveying roller mechanism adopts a two-roller structure, and the spacing of the two idler rollers is adjusted according to the diameter of the coiled material, the coiling is carried out by the two rollers, and the rotating roller is used to realize the unwinding and discharging of the winding material;
2) The leveling mechanism adopts a 5-roller plus 2-roller structure, that is, the leveling roller is fed by the upper 2 lower 3 plus the lower roller, and the spacing between the upper pressing roller and the lower roller is adjusted according to the thickness of the winding material, and the upper and lower pressing rollers are arranged. The sheet material, the rotating pressure roller drives the sheet material to continuously pass, thereby achieving the leveling of the sheet material;

Main technical parameters:
Loading weight: ¡Ü15 tons
Outer diameter: ¦Õ450¡«1250mm
Width: ¡Ü1700mm
Feeding roller diameter: 200mm
Leveling roller diameter: 125mm
Speed of decoiling: 2.5 RPM
Motor(reducer) power: 5.5kw/4P
Main drive: chain
Overall size(L*W*H): 3000*2350*1400mm
Weight: 2100KG
