Description:
The Hi-rib lath machine is used to produce the hi-rib lath which is applied to plaster and reinforcing the wall.Its excellent mechanical performance, light weight make it suitable for segmentation pouring concrete specially. This machine has advanced scientific and a wide range of practicability.

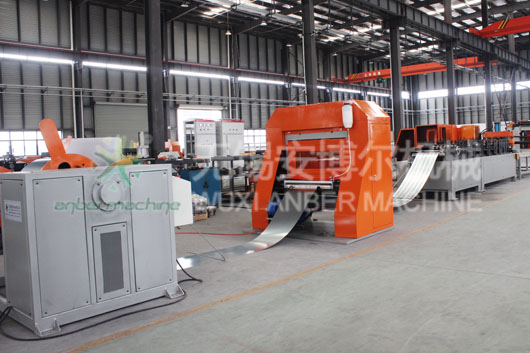

Equipment composition:

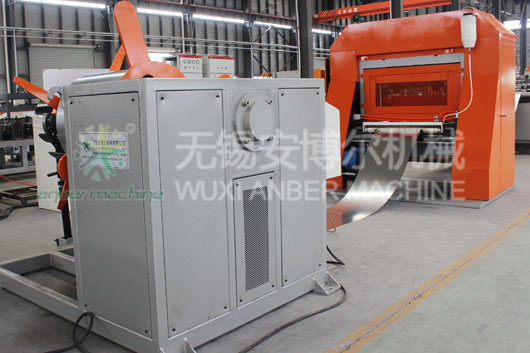

1.Decoiler
2.Punching Machine

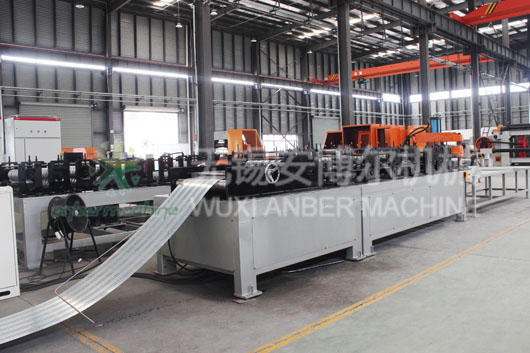

3.Forming and cutting integrated machine

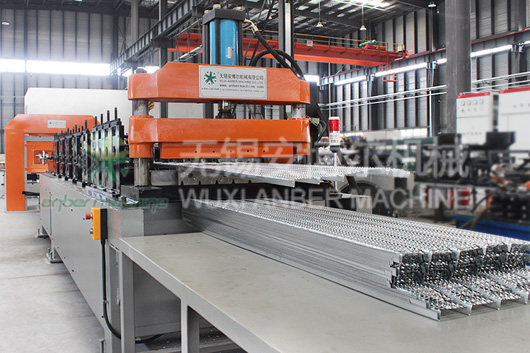

4.Hydraulic cutter (on forming machine)
5.Collecting table
6.Electric control cabinet
Main technical parameters:

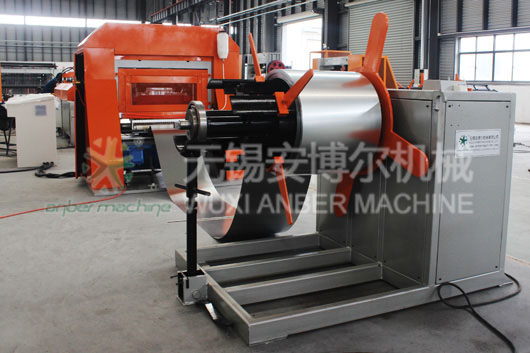

1.Decoiler(Model ABE-KL850)
No.
Name
Parameter
1
ID
¦µ420 ~520mm Adjustable
2
Loading weight
2500Kg
3
Material width
850mm
4
Centerline height
962mm
5
Decoiling speed
3.5rpm
6
Tension form
Manual(Rotate)
7
Motor
Power:2.2KW
Rotation speed:1420r/min (380V/50HZ)
8
Reducer
Speed ratio of reducer 135.83¡Á3
9
Voltage
3-phase£¬AC380V/50Hz
10
Size
L1250¡ÁW2095¡ÁH1562mm
11
Weight
800 kg
2.Punching machine:(Model ABE25-1000¡Á500)
No.
Name
Parameter
1
Punching force(Nominal pressure)
250 KN
2
Expanding speed
430~500 strokes/min
3
Highest speed
3.5m/min
4
Feeding distance
7.5mm
5
Press force
1.5¡Á2 KN
6
Slide stroke
¡À8mm
7
Link rod adjust distance
10 mm
8
Pay-off Motor
2.0KW, rotate speed: 2000r/min, Speed ratio of reducer i:5
