Metal lath and brickwork mesh machine

Self furred metal lath production line

Roll Shearing/expanding

Straightening and slitting machine

Decoiler

Stacker

Description：

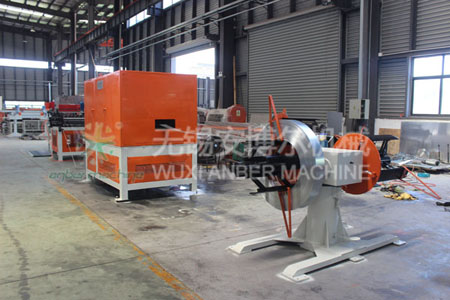

Self furring lath production line is used to produce the self furring lath which is applied to plaster and reinforcing the wall, the production line contains de-coiler, expanded main machine, roller profiling machine with hydraulic shearer and collecting table.
Technical parameters:
ANBER metal lath and brickwork mesh machine can produce metal lath and brickwork reinforcement mesh on one production line by change molds

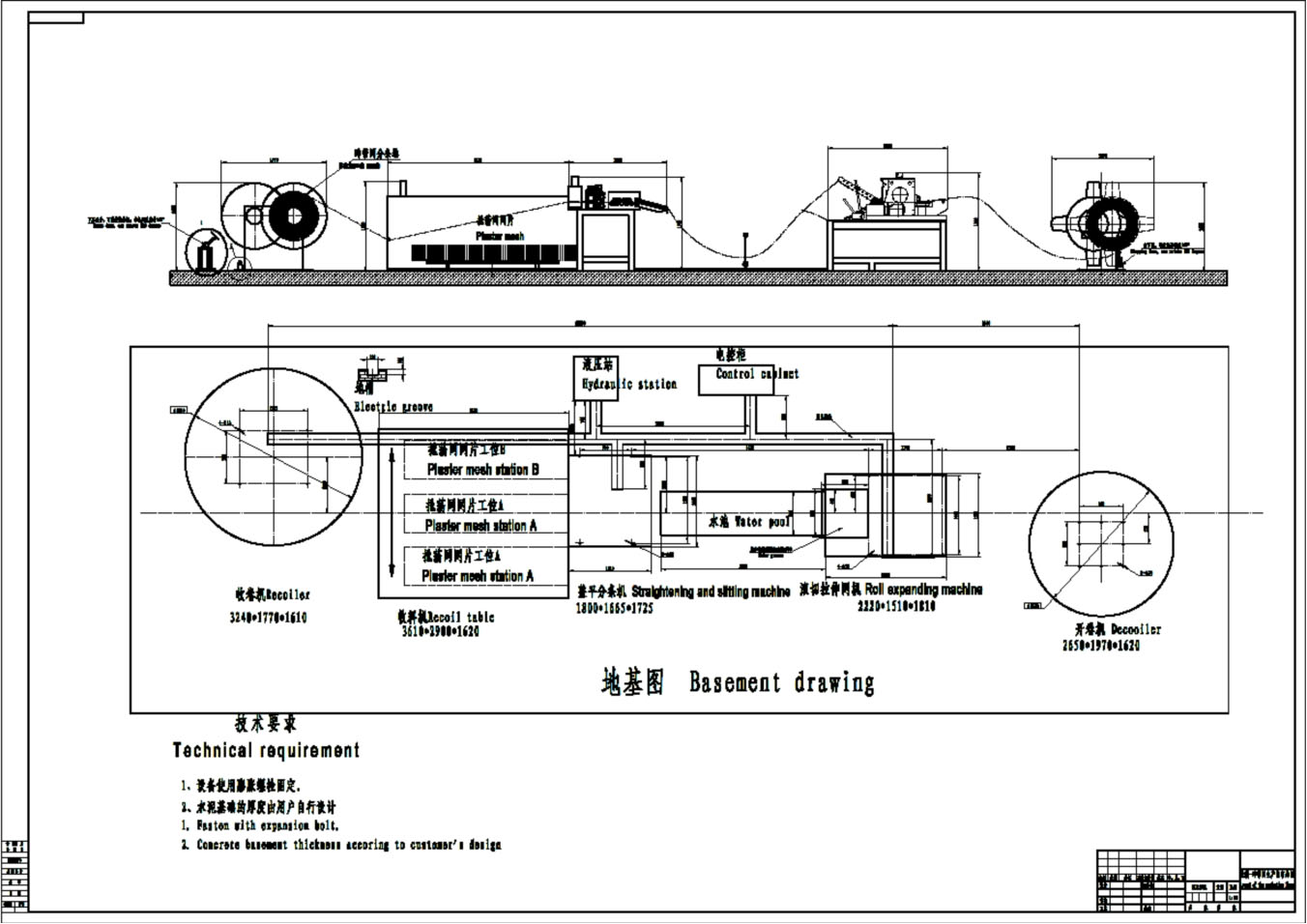

layout:

General information:

Machine name/Brief Description	Diamond mesh machine
Rolling Speed	12mpm
NO. of operators	Two
Approx. weight (Total weight)	4 tons
Total power requirement	12kw
Compressed air requirement (cft/min.)	0.5M3
Machine Guard	yes
Machine Mechanism	Rotary
Line direction	Left to right

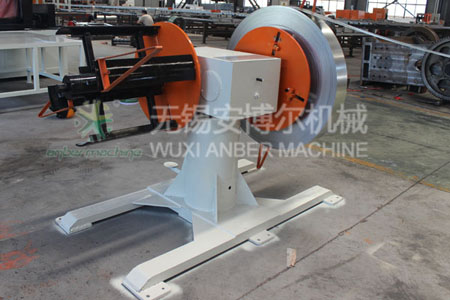

Decoiler:

Item	Name	Parameter
1	Inner diameter	500mm, adjustable
2	Outer diameter	1000mm
3	Loading weight	Loading weight of each side is 1t
4	Machine size	2650x1970x1620mm
5	Weight	1260Kg
6	Two sides	Each rotation 180°

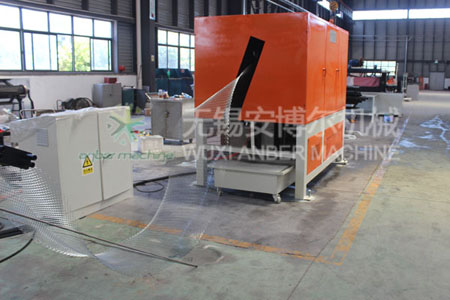

Roll shearing/expanding:

Item	Name	Parameter
1	Outer diameter of cutter	Φ263mm
2	Blade repaired capacity	3 mm
3	Speed or roll and cutting	12m/min
4	Motor	Power:4kw, Voltage: 380V, Rotation speed: 1450r/min
5	Machine size	2220x1510x1810mm
6	Weight	2352Kg

Straightening and slitting machine:

Item	Name	Parameter
1	Diameter of roll	63mm
2	Straightening roller QTY	13 straightening rollers
3	Motor	Power:3kW, ?Voltage：380V
4	Reduce speed machine	JZQ200—i=20.54
5	Size of machine	1800x1665x1725mm
6	Weight	1554Kg

Stacker:

Item	Name	Parameter
1	Product size	700x3000mm
2	Loading weight	1t
3	Loading height	500mm
4	Size of machine	361029001620
5	Weight	586Kg

Double head re-winder:

Item	Name	Parameter
1	Inner diameter	120mm
2	Outer diameter	800mm
3	Loading weight	300Kg
4	Motor	Power: 1.5kw, voltage: 380V, 2 sets
5	Machine size	3240x1770x1610mm
6	Weight	1420Kg
