Expanded metal mesh machine
• ABE-GS6.3-600 high speed expanded metal machine
• ABE-GS25-1250 high speed expanded metal machine
• ABE-GS40-1250 high speed expanded metal machine
• ABE-GS60-1250 high speed expanded metal machine
• ABE-GS100-2500 high speed expanded metal machine
• ABE-1.0-600 (6.3T) expanded metal machine
• ABE-1.0-1000 (16T) expanded metal machine
• ABE-1.5-1250 (25T) expanded metal machine
• ABE-2.5-1500 (40T) expanded metal machine
• ABE-4.0-1300 (60T) expanded metal machine
• ABE-3.0-2000 (63T) expanded metal machine
• ABE-6.0-1600(160T) expanded metal machine
• ABE-6.0-2000 (160T) expanded metal machine（Mold Moving)
• ABE-6.0-2000 (100T) expanded metal machine(Sheet Moving)
• ABE-6.0-2500 (100T) expanded metal machine
• ABE-8.0-2500 (260T) expanded metal machine
• ABE-6.0-3200(160T) expanded metal machine

Special Metal Expander
• Metal lath and brickwork mesh machine
• W600 plaster mesh production line
• Angle bead machine
• Plaster stop machine
• Brickwork reinforcing mesh machine
• Rib lath machine
• High speed hi-rib lath machine
• Architrave bead machine
• Expansion joint bead machine

Standard type expanded metal mesh machine

ABE-4.0-1300 (60T) expanded metal machine

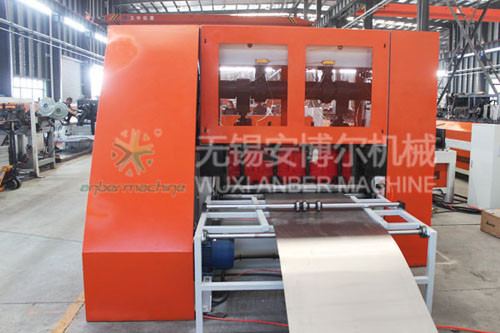

Front view of the metal expander

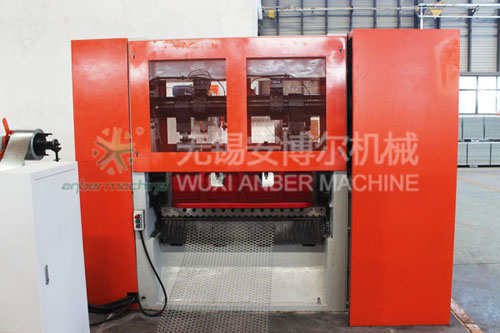

Mesh out part of the metal expander

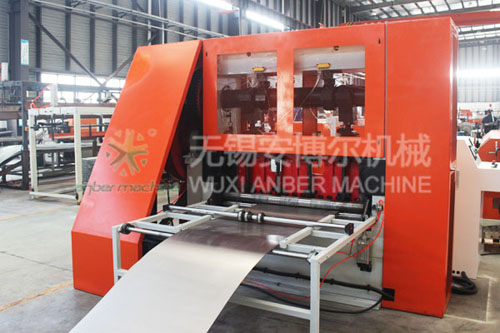

Steel plate feed-in Side of the metal expander

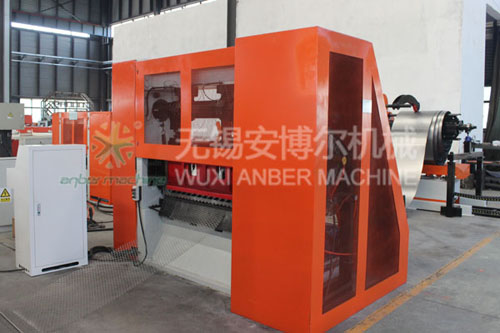

Side view of the metal expander when the mesh out of the machine

Composition of machine:
The expanded metal mesh machine is composed of main machine frame, driving system, crankshaft, upper blade frame(movable frame), down blade frame, feeding device, material moving device, lubrication system and electric control part.
Main technical parameters:
Model: ABE-4-1300
Material: low carbon steel
Max. width: 1300mm;
Max. Thickness of steel: 4.0mm;
Expanding speed: 85 strokes/minute;
Motor power: 11KW;
Expanding force: 60T;
Overall size of machine(L*W*H): 2500*1400*2150mm
Machine weight: 4.7 tons
Typical Mesh size: LWD*SWD=25*50mm material: DC53 or according to customer’s demand

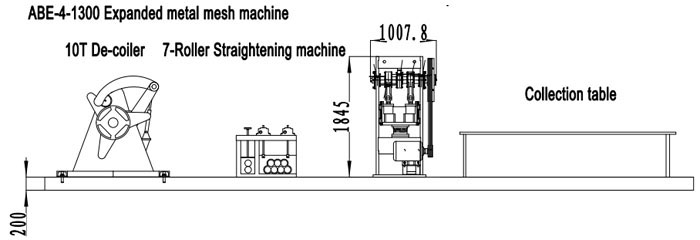

Layput of expanded metal mesh machine:

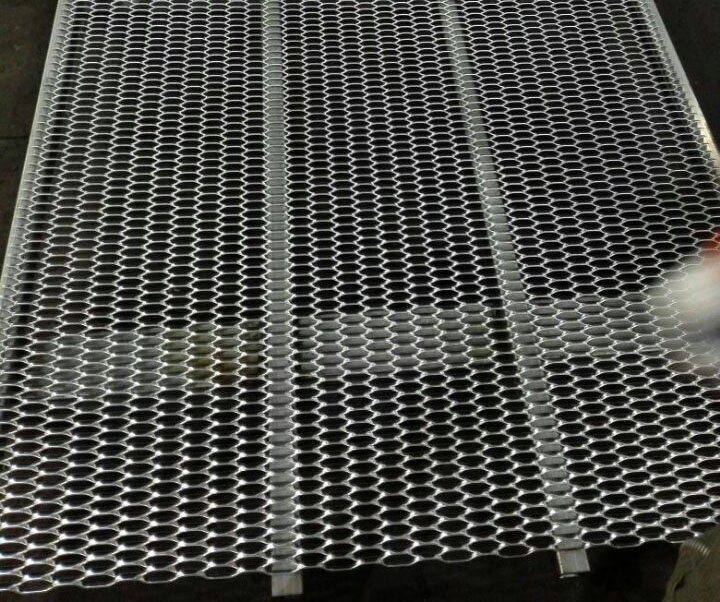

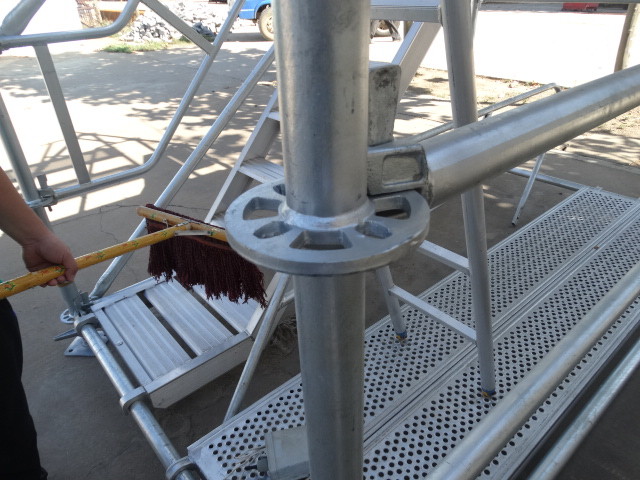

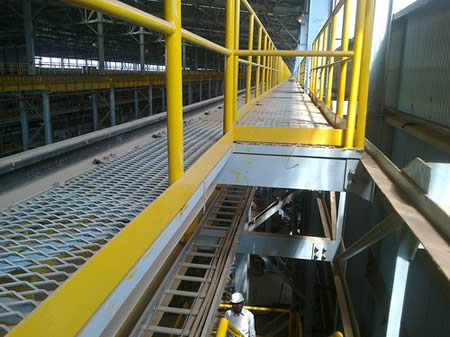

Typical application of expanded metal mesh:
