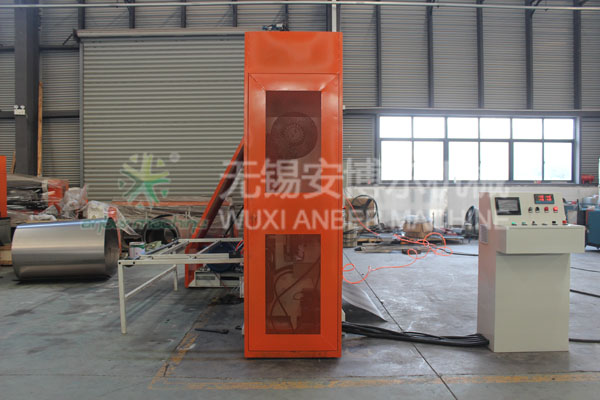

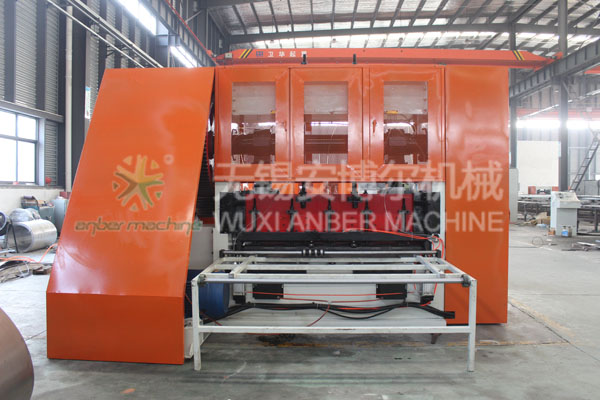

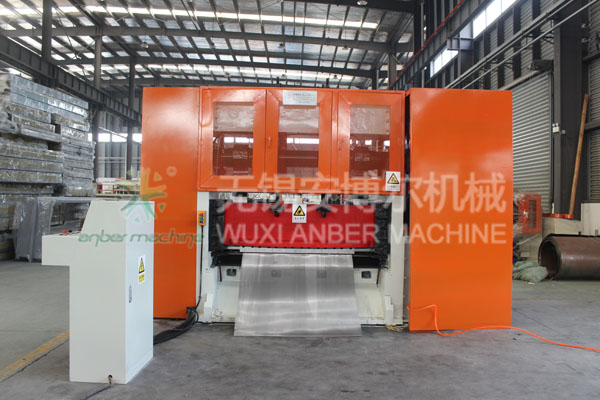

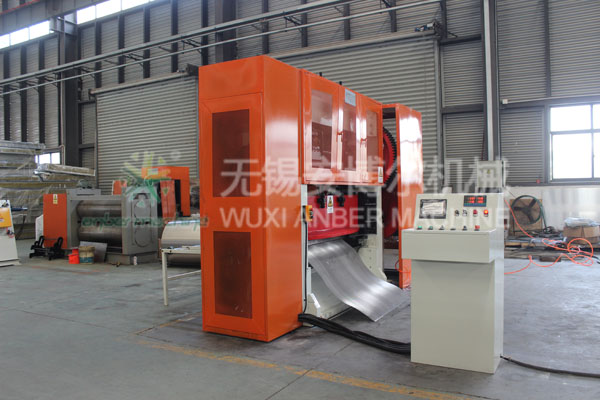

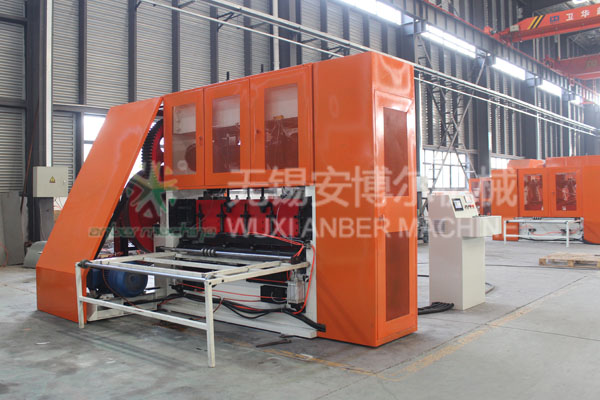

Description of ABE-6.0-1600(160T) expanded metal mesh machine
Our machine is equipped with servo drives and PLC to assure the capabilities of producing a wild range of expanded metal products in high speed as well as delivering the high quality of outputs. You can produce either with coil or with single sheet of steel on the same machine.
Features
Accurate, no-waste and high speed production
Easy maintenance and user-friendly control panel
Suitable for both single metal sheet and coil production
Automatic lubrication system
Composition of expanded metal machine
The expanded metal mesh machine is composed of machine frame, sidewall plate, top plate, drive motor, V type belt wheel transmission mechanism, clutch device, crankshaft Connecting rod system, sliding block, up and down blade and tool holder, material feeding and moving device, lubrication system and electric system.
Main technical parameters
Model: ABE-6.0-1600
(Suitable for both single metal sheet and coil production)
Nominal Pressure Force: 160 Tons
Max. Width of the steel plate: 1600 mm
Thickness of material: ≤6.0mm for mild steel(according to mesh size and width)
Max. Strokes per minute: 85 strokes/min
Stroke of slide: 80mm
Main Motor power: 22 kw
Servo motor power: 3kw
Max. LWD: 200 mm
Max. SWD: 100mm
Overall dimension of main machine (L*W*H): 3420*1925*2500mm
Machine weight: about 11 tons
Automatic lubrication system
Servo motor feeding system
Control system: PLC (length calculate, pieces calculate and auto cutting)
