Machine catalogue
|
Fence type expanded metal mesh machineABE-6.0-2000 (100T) expanded metal machine
Fence metal mesh machine
Expanded steel grating machine
Metal lath machine
Diamond expanded mesh machine

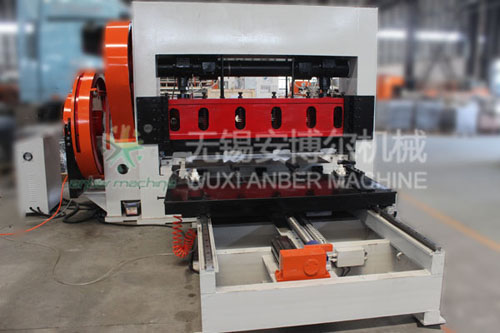

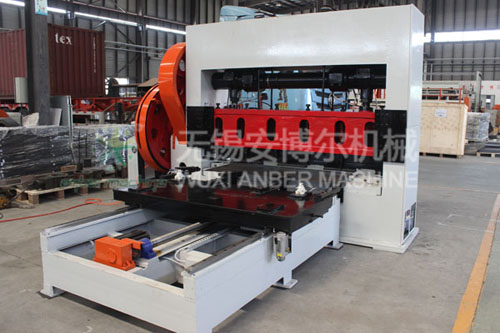

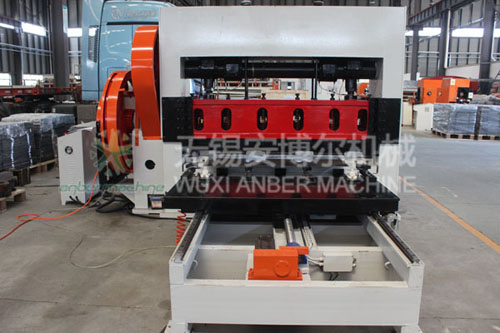

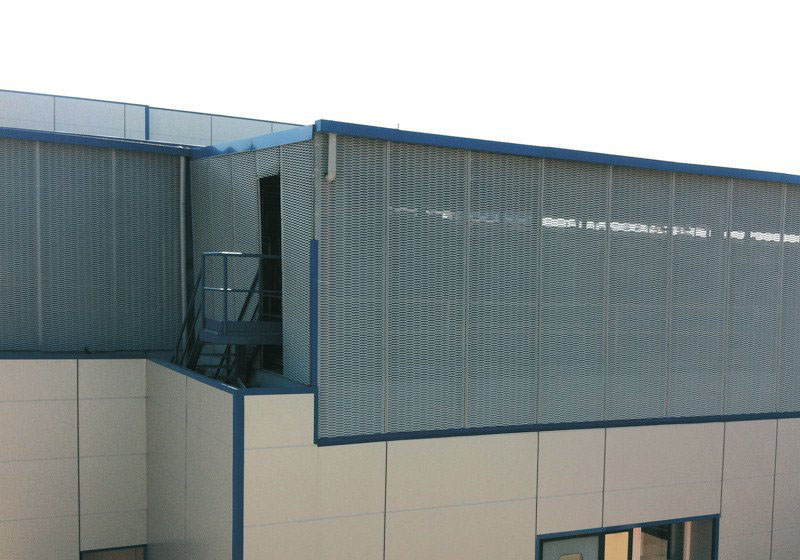

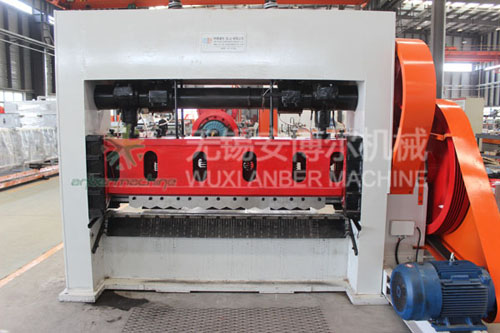

Expanded metal lath machine The fence mesh machine is used produce the expanded metal mesh for fence, the fence is usually applied in construction, hardware, door, windows, safety fence, highway guardrail and lathes. This kind of fence mesh usually need surface treated to used as door and the highway guardrail, etc. The machine is in high speed with satisfied expanded mesh. The shearing force of the expander is related to the thickness of the materials as well as the LWD. Considering the same thickness of the raw materials, the shearing force will increase with the decreased LWD. Model: ABE-6-2000 Range of the thickness: 0.5-4mm Cutting width: 2000mm SWD: 10-70mm LWD: 20-150mm Working speed: 60 strokes per minute Feeding distance: 0-4mm Motor power: 15kw Net weight: 12T Punching force: 63T Overall size: 3600mm*2500mm*3000mm Typical application of expanded metal mesh:
|
