Brickwork reinforcing mesh machine

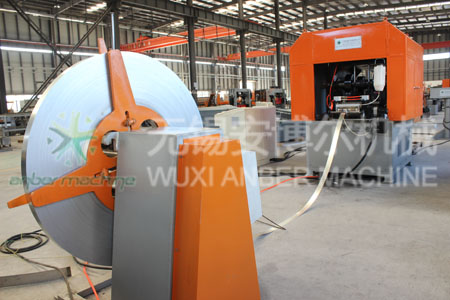

Brickwork reinforcement machine

Brickwork reinforcement machine

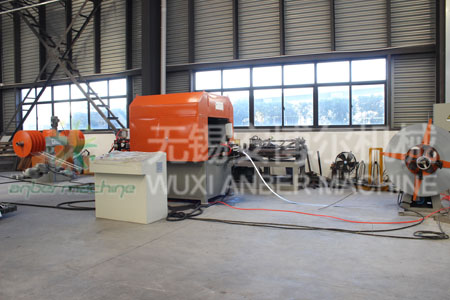

Brickwork reinforcing mesh Machine

Brickwork reinforcing mesh Machine

Brickwork reinforcement machine

Brickwork reinforcement machine

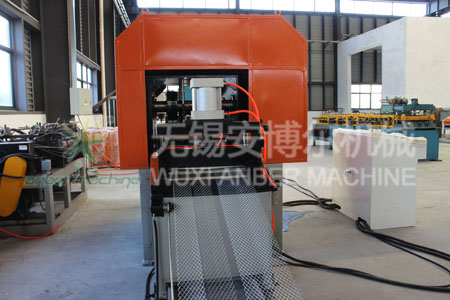

Diamond expanded mesh machine

Diamond expanded mesh machine

coil mesh machine

Coil mesh machine

  • Brickwork reinforcement machine
  • Brickwork reinforcing mesh Machine
  • Brickwork reinforcement machine
  • Diamond expanded mesh machine
  • Coil mesh machine

Description:
Based on market demand, our company has designed and developed this professional production line of coil mesh independently. It features low noise, high yield, energy saving and environment protection. It can produce various type of coil mesh with width from 50mm to 200mm. With high efficiency, it can produce 2-4 line of mesh at a time. And also, its operation is easy. This production line is mainly composed of three parts: feed unit, strip punching machine and receiving unit. It also includes two speed induction-adjustment devices.
Decoiler parameter:
Maximum inner diameter: 480mm, can be adjustable
Loading weight: 1000Kgs
Max. strip width: 150mm
Motor: 1.5kw
Machine weight: 500kg
Overall size: 1100*700*700mm
Expanded main machine parameter:
Machine size: 3000mm*1200mm*1900mm
Weight: 4T
Motor power: 4kw
Mesh opening: 15ˇÁ25mm or accoring to customer's requirement
Mesh width: 200mm*2; 100mm*4; 150mm*2
Punching force: 16T
Material thickness: 0.2-0.7mm
Mesh recoiler parameter:
automatic mesh recoiler and steel trap recoiler
