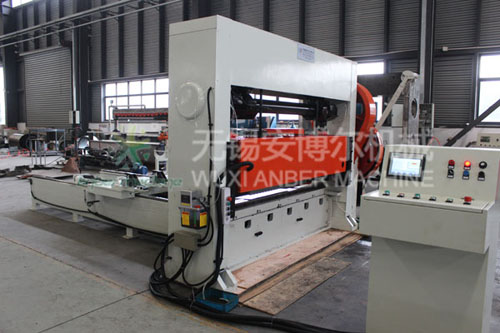

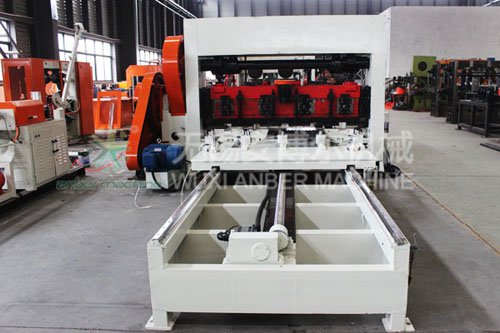

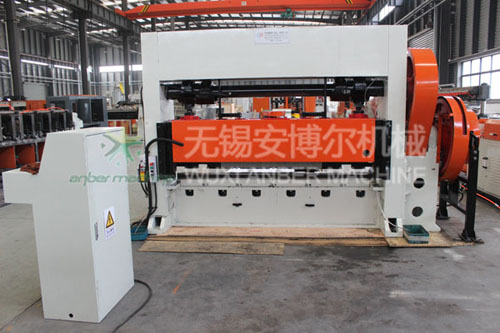

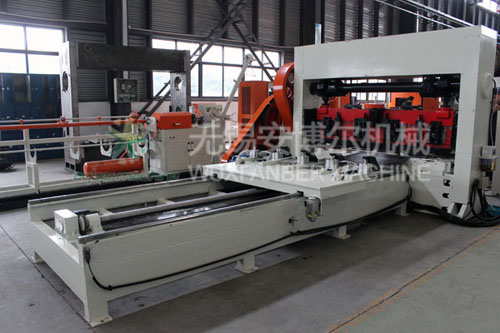

Description of ABE-3.0-2000 (63T) expanded metal machine: ABE-3-2000 High Quality Expanded Metal Mesh Machine belongs to medium size machine. The machine can make expanded metal mesh width up to 2000mm,and the mesh thickness up to 2.5mm.The running speed of this machine is 110 times/min.
It is suitable for the material such as low carbon steel sheet, aluminum sheet, stainless steel sheet, aluminum magnesium alloy sheet, copper sheet, Nickel sheet.
Finished product application.

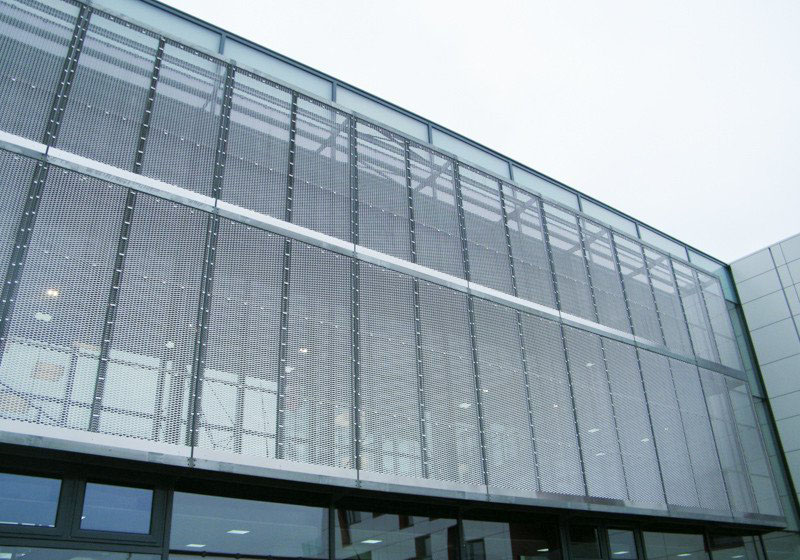

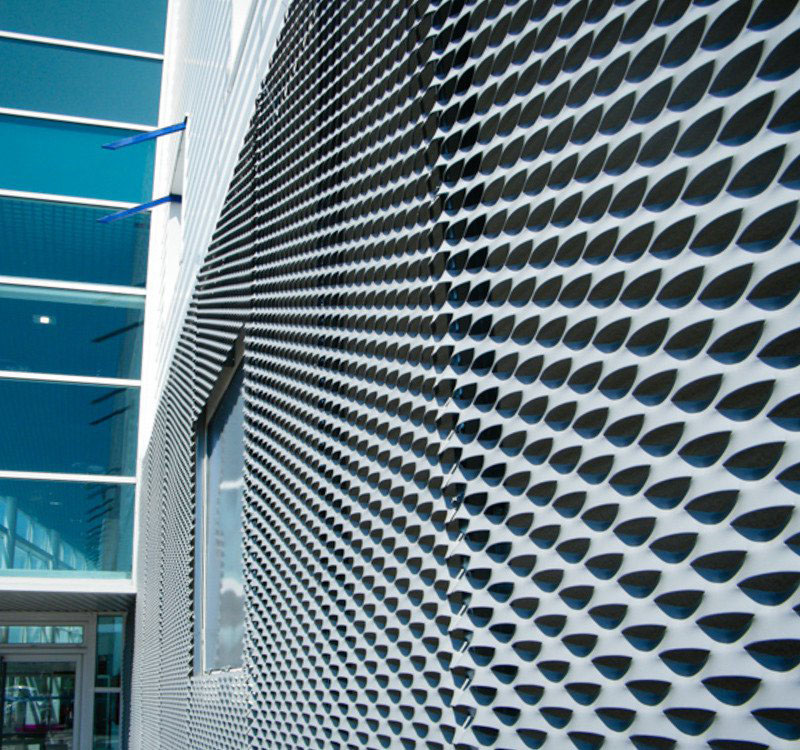

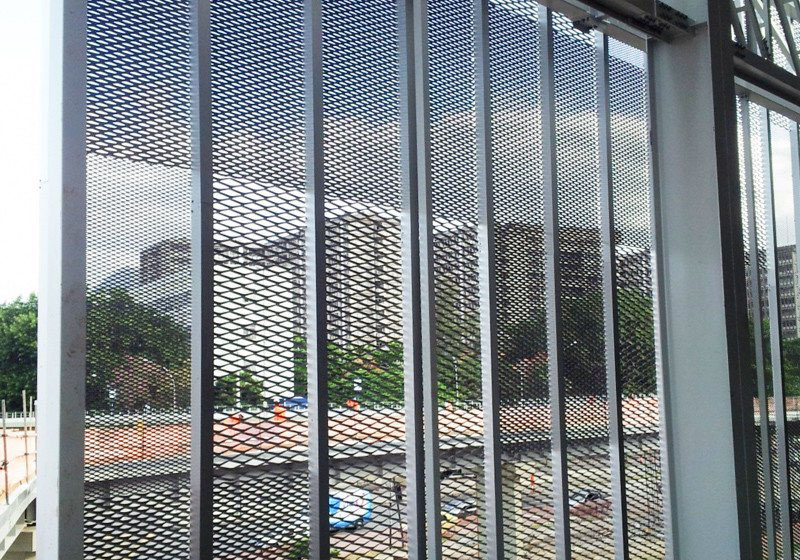

The light expanded metal mesh widely use for filter, stereo shield,decoration,arts and crafts, covering screen for first class sound case etc.
Main technical parameters:
Model: ABE-3-2000;
Normal pressure: 63 Tons;
Thickness of material: ≤3mm;
Width of material: ≤2000mm;
Distance of feed: 0-6mm;
Stroke per min: 75 strokes / min;
Motor power: 11KW;
Rotation speed of motor: 1480r/min;
Weight: about 11 tons;
Overall dimension (L*W*H): 3400*3400*2350mm
