High speed expanded mesh machineABE-GS80-1600 High Speed Expanded Metal Machine

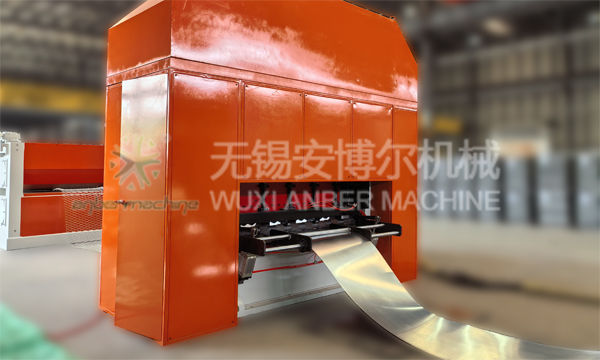

High speed facade expanded mesh making machine

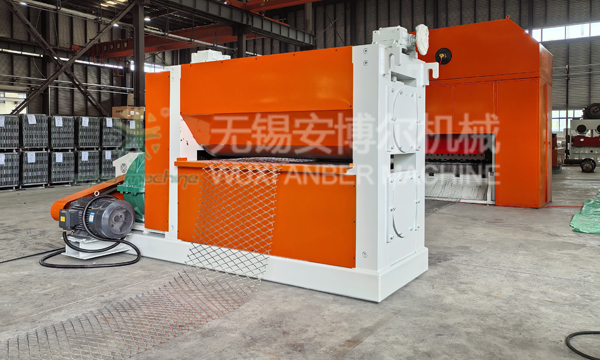

Facade mesh making machine

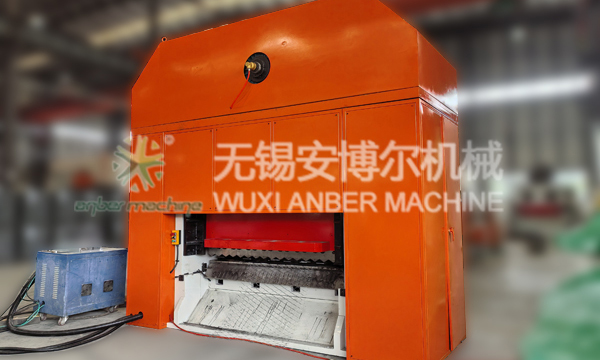

Aluminum expanded metal facade mesh machine

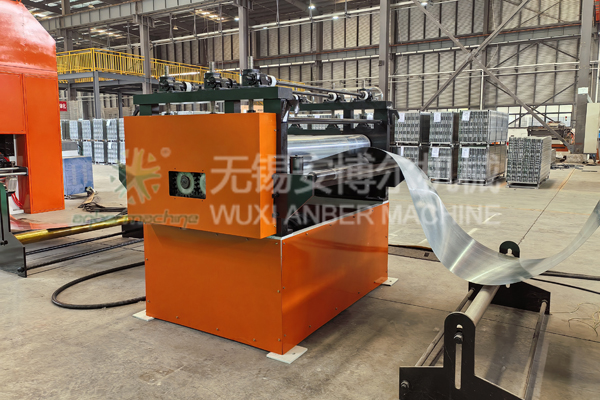

High speed expanded metal machine What is expanded metal mesh? Aluminum expanded metal facade mesh is formed from a piece of metal and creating different shaped holes in one step,such as diamond,hexagonal,square,etc.Aluminum expanded metal facade mesh is widely used in exterior facade of buildings,for example dining hall,airport access,shopping all,theater,museum,exhibition halls,concert halls or other larger buildings.Aluminum expanded metal mesh with the advantages of light weight and excellent corrosion resistance is the most commonly used as facade.It with non-slip surface and larger openings has good ventilation,which can provide a comfortable environments.Besides,it with various colors has aesthetic appeal,so it is the best choice foe decorating exterior facades. The main function of facade cladding is the protection of the building against the changes in weather conditions.Open areas in expanded metal also provide good air ventilation. Furthermore facade claddi ng represent an important decorative value. Our wide range of colors,materials and openings of expanded metal products gives the architects limitless possibilities to express their own style in variety of their projects.Such as shopping malls,headquarters,car parking,train stations,hospitals,gardens,apartment buildings,private houses etc,. Expanded metal mesh production process The raw material of expanded mesh usually has low carbon cold rolled steel plate, aluminum, copper and other metal plates, and the tensile strength does not exceed 450Mpa Facade expanded mesh making machine wall panels of the frame body are added to the steel plate machine, the top is the casting part and the base is the welding part after aging, so that the main frame structure is more firm and compact, with good stability, high strength and rigidity.The expanded metal mesh machine is composed of machine frame, sidewall plate, top plate, drive motor, V type belt wheel transmission mechanism, clutch device, crankshaft Connecting rod system, sliding block, up and down blade and tool holder, material feeding and moving device, lubrication system and electric system. Main technical parameters Model: ABE-GS80-1600 Punching force: 80 tons Material thickness: 0.5~4.0mm Max.width of material: 1600mm Max. working speed:≤120~200 strokes/min Feeding speed: max 200mm/min LWD:6~200mm SWD:3~80mm Strand width:0.5~20mm Servo motor feeding power: 4kw, 2000r/min; Punching motor: three-phase 380V/50Hz, 30kw, 4P, 1460r/min; Working air pressure: 0.5~0.6MPa; Machine weight: about 12T Equipment size(L*W*H): 3300*1600*3100mm; Machine working environment: (1) Working power: three-phase 380V/50Hz; (2) Working environment temperature: 0~45℃; (3) Relative humidity: relative humidity 95% and below; Monthly average relative humidity 90% and below; (4) Working system: 16 h/day, 250 days per year |
