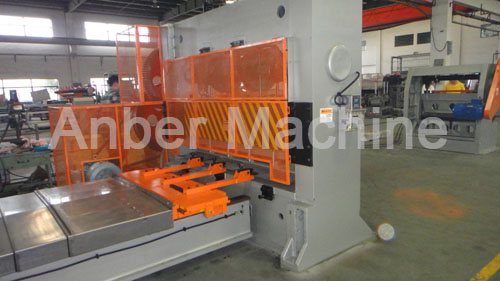

ABE-6-2000 Expanded metal mesh machine

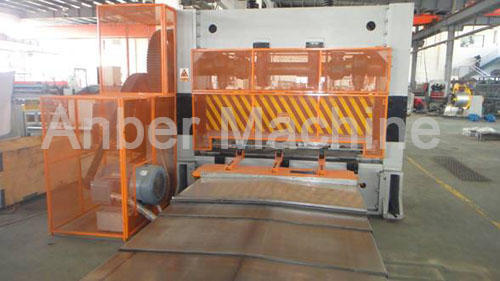

Expanded metal mesh machine

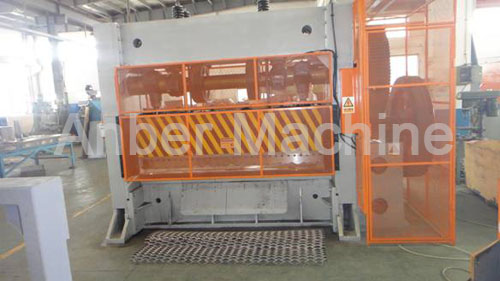

Heavy type expanded metal mesh machine
Description of automatic expanded metal machine:
ABE-6-2000 expanded metal machine is heavy-duty expanded metal machine. This kind of metal mesh is mainly used for shipbuilding, mining, machinery, construction, transportation, oil, urban construction, hardware, protective and so on. The machine can also punch stainless steel, aluminum and other materials board network, its use will be more extensive. It adds automatic lubricating system and feeding system by numerical step motor on basis of original skilled technique. It gets good effect after being used. It has improved a lot on control and security. Its structure has characteristics of rationality, good appearance, environmental protection, energy saving.
Composition of metal expander:

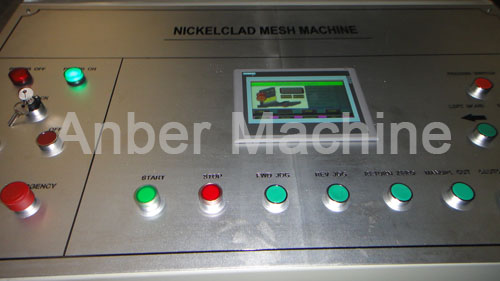

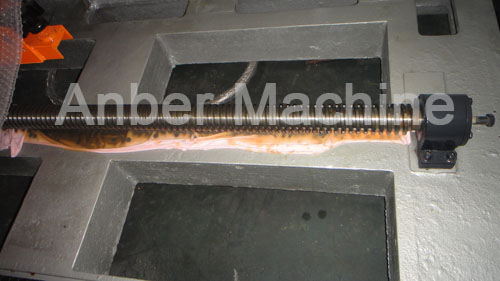

The expanded metal mesh machine is composed of framework, driving system, crankshaft connection rod, knife rest, feeding system, swing unit and electric system.
Main technical parameters:
Model: ABE-6-2000;
Normal pressure: 100 Tons;
Thickness of material: ≤6mm;
Width of material: ≤2000mm;
Stroke per min: 60-70 times / min;
Motor power: 18KW;
Total Weight: about 12 tons;
Overall dimension of main machine (L*W*H): 3500*1200*2500mm;
